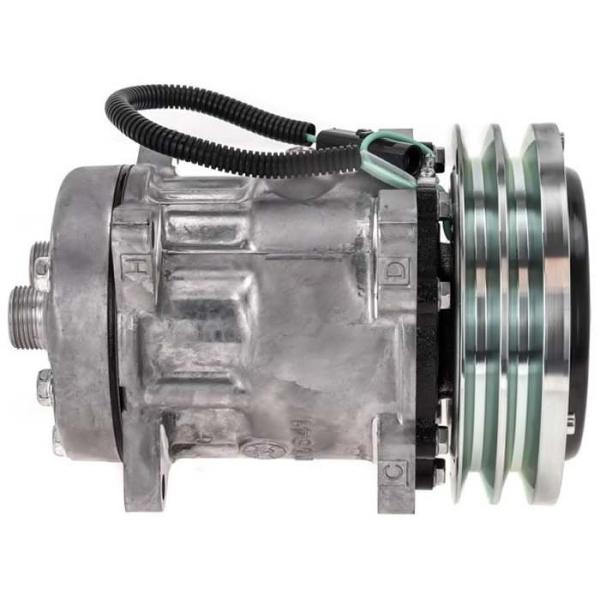

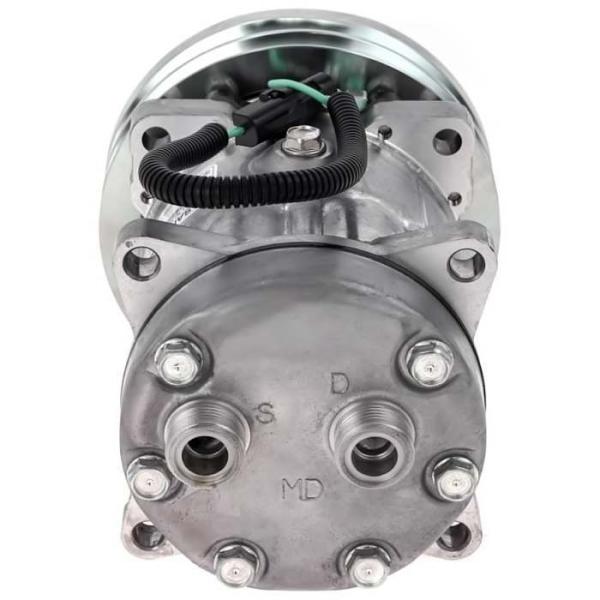

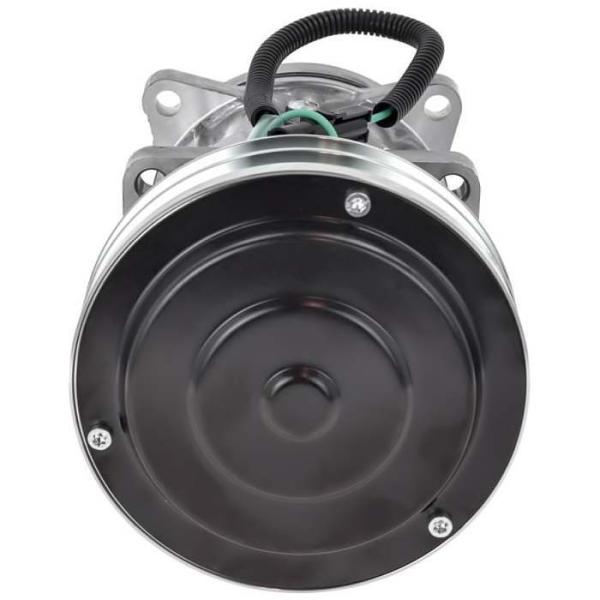

New Sanden Style 4611 AC Compressor
Product Information
- Model Number:
- SD7H15
- OEM Numbers:
- 4611, 1990760C2, 86983967, 86992613
- Stock Number:
- 05-4611A
- Condition:
- New
- Weight:
- 18.00 pounds
Product Description
Case/ IH OEM Part Numbers: 86983967, 1990760C2, 86992613
Note: Model number 4611 replaced by Model number 4489 Click Here
New OEM Equivalent Replacement SD7H15 Compressor
Replaces Sanden Number: 4611
Compressor Family: SD7H15
Style: Sealed Heavy Duty
Compressor Mount Type: Ear
Rotation Direction: CW
Cylinder Head: MD
Port Angle: Horizontal
Head Port Discharge Size: 1 X 14 Male Thread
Head Port Suction Size: 1 X 14 Male Thread
Clutch Diameter: 152 mm ~ 5.98 inches
Clutch Type: W/ Dust Cover
Belt Type: V-Belt
Number of Grooves: 2
Voltage: 24
Coil Connector: 1 Wire Female Packard #12010996
Coil Position: 12 O'clock
Oil Type: PAG 100
Oil Qty: 285cc
Refrigerant: R134a
Warranty: 1-Year Unlimited-Mileage Warranty
$225.00
List Price: $393.75
You Save: -$168.75
